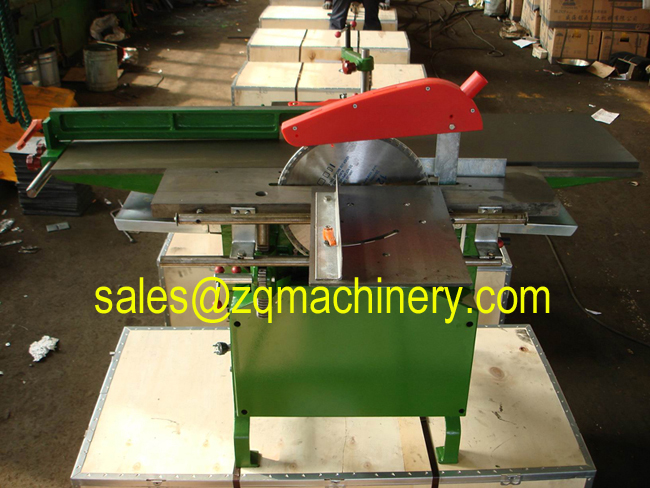

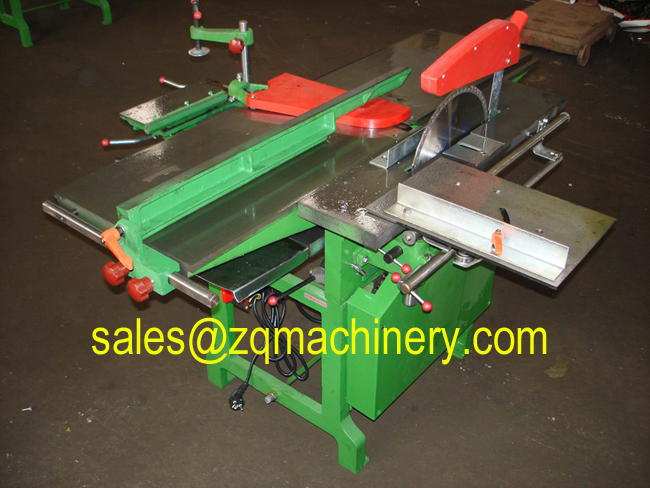

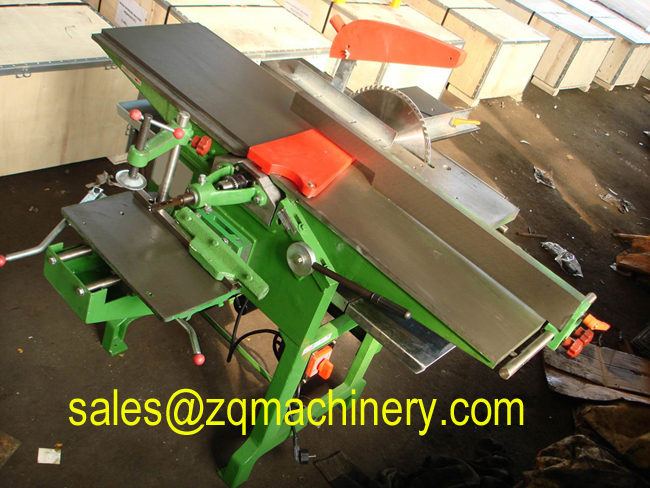

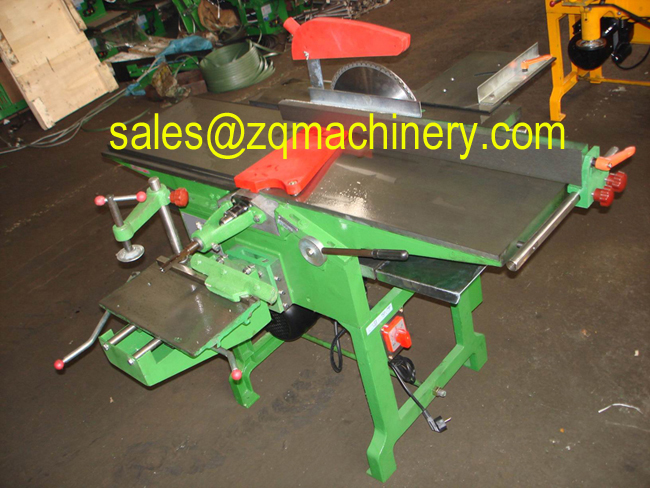

MQ443A multi use woodworking machine

coppermotorwithtwovalvecapacitor,singlephase,4HPpower，greenoryellowcolor,doubleliftingscrewforthicknessersection,4planingblades，equippedwithslidingtable,soildironcastfence,65setseach20GPcontainer.

Features:

1. fixed up with the patent sliding table structure, enhancing the sawing section;

2. adopts double worm and worm gear lifting system for thicknesser;

3. uses gear rack motiser section, which has strong working stroke;

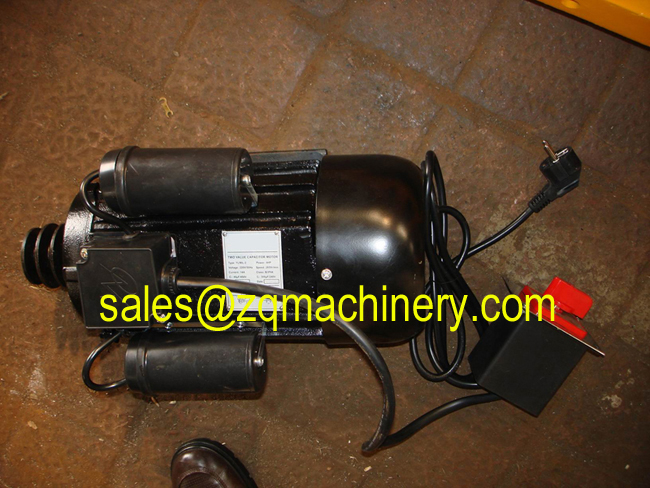

4. equip with 4HP copper motor with two valve capacitor, single phase, 50HZ

5. Green color or yellow color is optional.

6. Equipped with 4 planing knives.

7. Customize service is available.

Specification:

Model	MQ443A
Max. planing width: mm	300
Max. planing depth: mm	3
Height of thicknesser entrance: mm	10-120
Min. thicknessing length: mm	130
Feeding speed: m/min	10
Spindle rotation speed: rpm	3500
Max. sawing thickness: mm	80
Motor power: HP	4
Overall dimension: mm	13001305900
Weight: kg	248

Features:

1. fixed up with the patent sliding table structure, enhancing the sawing section;

2. adopts double worm and worm gear lifting system for thicknesser;

3. uses gear rack motiser section, which has strong working stroke;

4. equip with 4HP copper motor with two valve capacitor, single phase, 50HZ

5. Green color or yellow color is optional.

6. Equipped with 4 planing knives.

7. Customize service is available.

Specification:

Model	MQ443A
Max. planing width: mm	300
Max. planing depth: mm	3
Height of thicknesser entrance: mm	10-120
Min. thicknessing length: mm	130
Feeding speed: m/min	10
Spindle rotation speed: rpm	3500
Max. sawing thickness: mm	80
Motor power: HP	4
Overall dimension: mm	13001305900
Weight: kg	248
