Features:

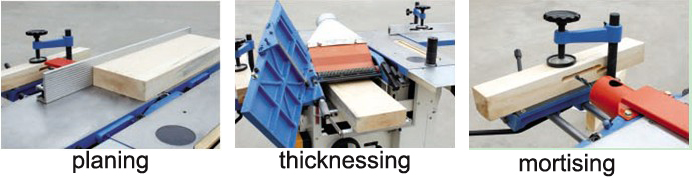

1. adopts bridge type planing guard to keep the operation safe;
2. this model with longer workbench, length is 2000mm;
3. adopts reversible planing workbench, (front and back workbench reversing separately optional.
4. adopts the fence which can be tilted from 45°-90°
Specification:
Model | MP410S |
Max. paling width: | 400mm |
Planing thickness: | 6-210mm |
Max. planing depth: | 5mm |
Spindle diameter: | 87mm |
Spindle speed: | 5200rpm |
Motor power: | 3kw |
Feed speed: | 6/12m/min |
Max. mortise depth: | 100mm |
Max. mortise width: | 16mm |
Bit fitting diameter: | 16mm |
Suction pipe diameter: | 120mm |
Overall dimension: | 2000*760*1140mm |
Net weight: | 485kg |
Features:
1. adopts bridge type planing guard to keep the operation safe;
2. this model with longer workbench, length is 2000mm;
3. adopts reversible planing workbench, (front and back workbench reversing separately optional.
4. adopts the fence which can be tilted from 45°-90°
Specification:
Model | MP410S |
Max. paling width: | 400mm |
Planing thickness: | 6-210mm |
Max. planing depth: | 5mm |
Spindle diameter: | 87mm |
Spindle speed: | 5200rpm |
Motor power: | 3kw |
Feed speed: | 6/12m/min |
Max. mortise depth: | 100mm |
Max. mortise width: | 16mm |
Bit fitting diameter: | 16mm |
Suction pipe diameter: | 120mm |
Overall dimension: | 2000*760*1140mm |
Net weight: | 485kg |
