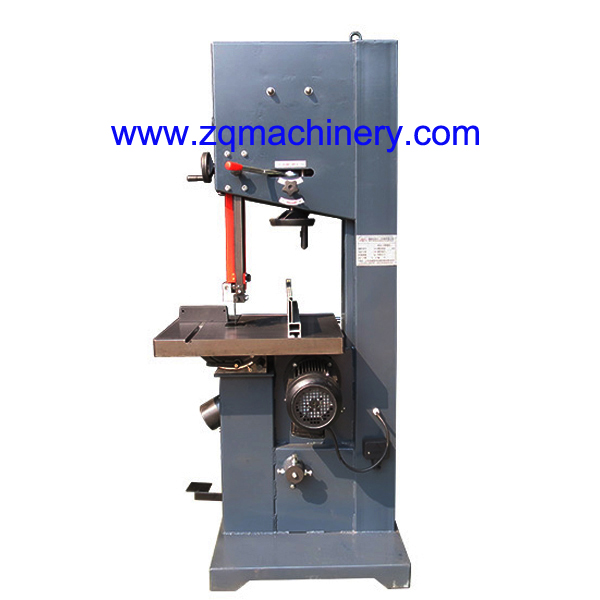

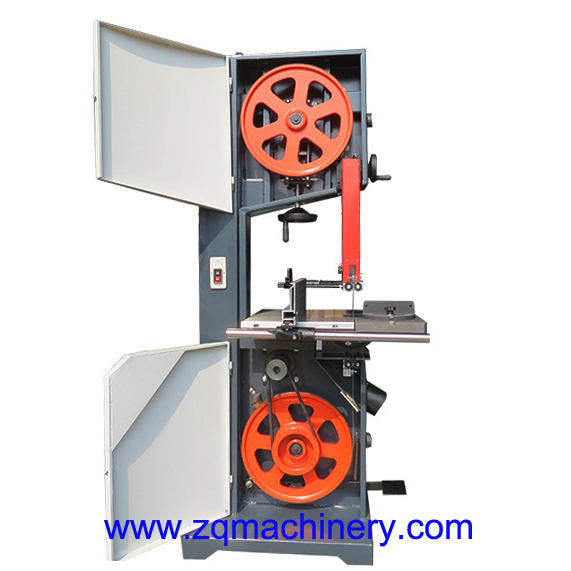

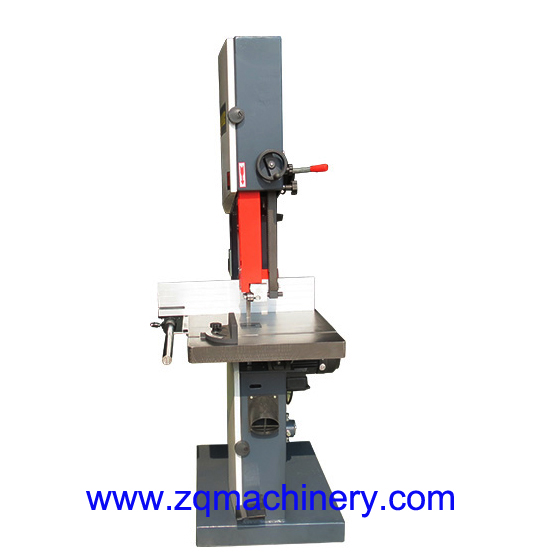

Bandsawismainlyusedforsawingofwood,plasticandothersoftmaterials.Itisfittoprocesssquareandcurvewood,alsocandotiltingsaw.Themachinehasthecharacteristicsofgoodqualityinproduction,highefficiency,easytooperate,safeandreliabilityetc.Itisidealwoodworkingmachineandnowitisalsousedforcuttingthemeatinfoodrefrigerationfield.ZQMcanofferthebandsawwith14",16",19",20",24",27"diametersawwheel,
Features:
1. The main frame adopts new welding structure (two tube welding together) with rib plate to ensure the body stability;
2. The fly wheel of this band saw is cast iron type to ensure the long using-life;
3. Working table with 45 degree tilting gauge and easy to operate;
4. The cutting fence is Aluminium type with scale and quick locking device.
5. Magnetic power switch to ensure the operation safety
6. Bearing type saw blade guide structure to ensure the working performance
7. Workbench with good Aluminium fence and mitre cutting gauge
Specification:
Model | MJ350 | MJ344B | MJ344 | MJ345 |
Working table size: mm | 500*450 | 500*450 | 590*485 | 630*525 |
Saw wheel width: mm | 27 | 35 | 35 | 35 |
Saw wheel diameter: mm | 350 | 400 | 400 | 500 |
Saw wheel rotation speed: rpm | 462/730 | 730 | 1200 | 1000 |
Cutting speed: m/s | 11/16 | 15 | 25 | 25 |
Cutting thickness: mm | 200 | 320 | 320 | 370 |
Band Saw blade length: | 2685 | 3100 | 3620 | 4020 |
Cutting throat: mm | 340 | 380 | 380 | 480 |
Working table adjustable angle: | -10~45 | 0~45 | 0~45 | 0~45 |
Motor power: kw | 0.75 | 2.2 | 2.2 | 2.2 |
Overall dimension: mm | 650*440*1630 | 770*580*1700 | 752*800*1780 | 752*916*1890 |
Net weight: kg | 120 | 160 | 210 | 248 |
Features:
1. The main frame adopts new welding structure (two tube welding together) with rib plate to ensure the body stability;
2. The fly wheel of this band saw is cast iron type to ensure the long using-life;
3. Working table with 45 degree tilting gauge and easy to operate;
4. The cutting fence is Aluminium type with scale and quick locking device.
5. Magnetic power switch to ensure the operation safety
6. Bearing type saw blade guide structure to ensure the working performance
7. Workbench with good Aluminium fence and mitre cutting gauge
Specification:
Model | MJ350 | MJ344B | MJ344 | MJ345 |
Working table size: mm | 500*450 | 500*450 | 590*485 | 630*525 |
Saw wheel width: mm | 27 | 35 | 35 | 35 |
Saw wheel diameter: mm | 350 | 400 | 400 | 500 |
Saw wheel rotation speed: rpm | 462/730 | 730 | 1200 | 1000 |
Cutting speed: m/s | 11/16 | 15 | 25 | 25 |
Cutting thickness: mm | 200 | 320 | 320 | 370 |
Band Saw blade length: | 2685 | 3100 | 3620 | 4020 |
Cutting throat: mm | 340 | 380 | 380 | 480 |
Working table adjustable angle: | -10~45 | 0~45 | 0~45 | 0~45 |
Motor power: kw | 0.75 | 2.2 | 2.2 | 2.2 |
Overall dimension: mm | 650*440*1630 | 770*580*1700 | 752*800*1780 | 752*916*1890 |
Net weight: kg | 120 | 160 | 210 | 248 |
