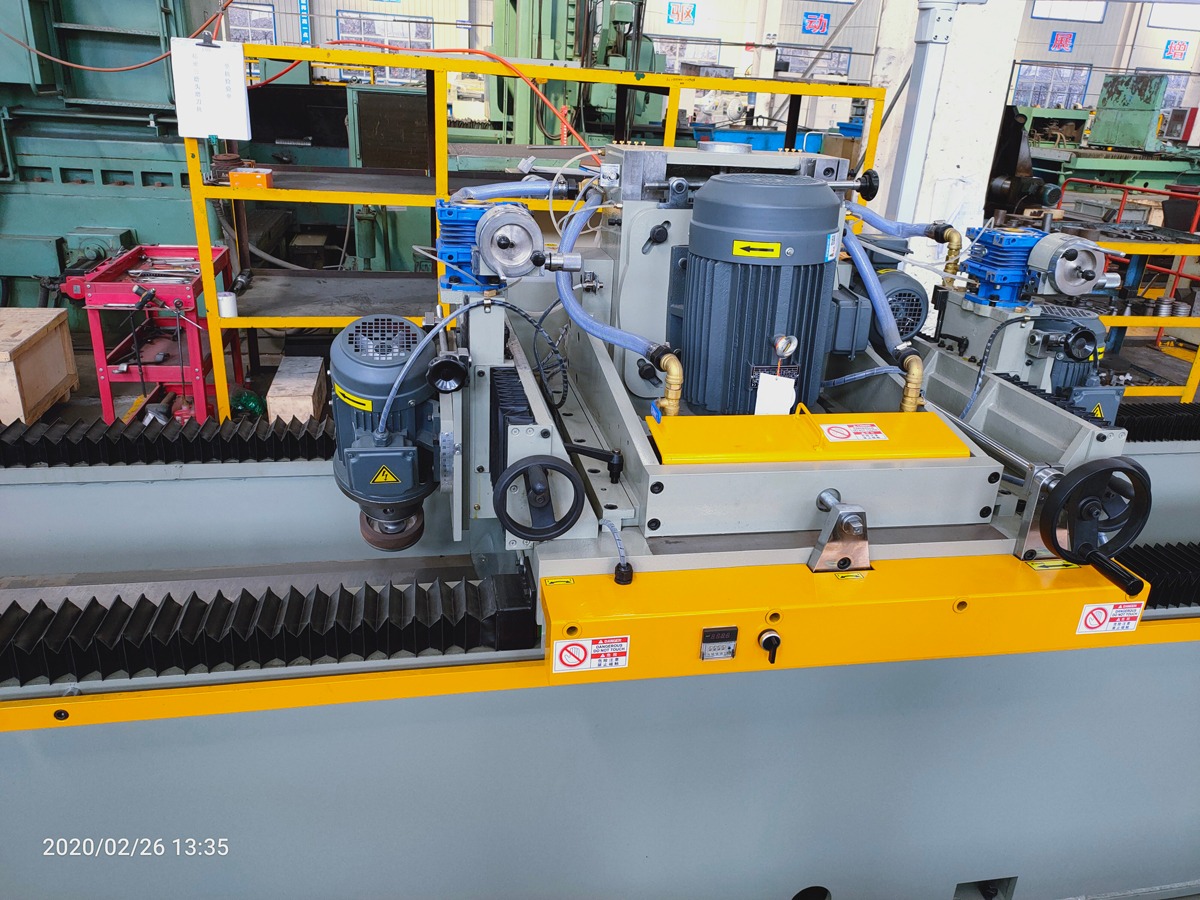

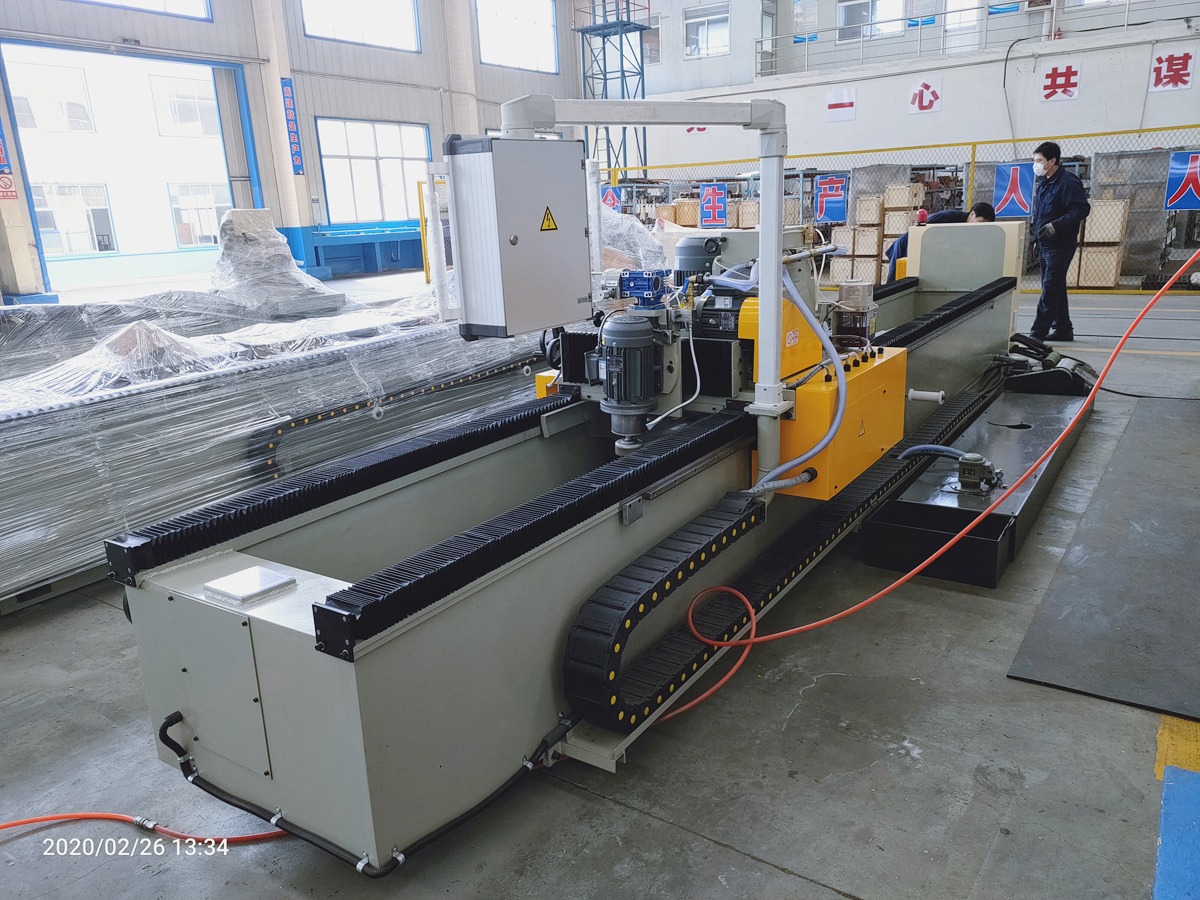

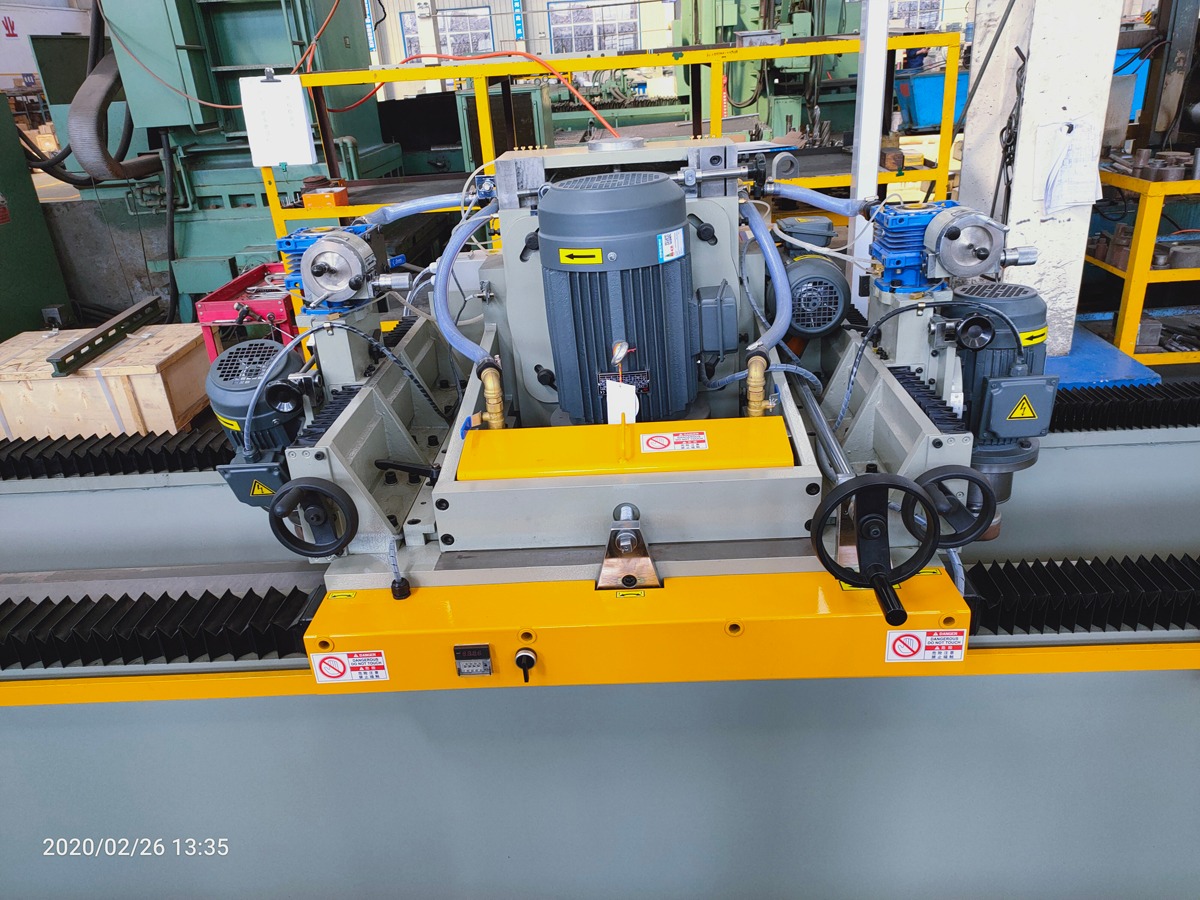

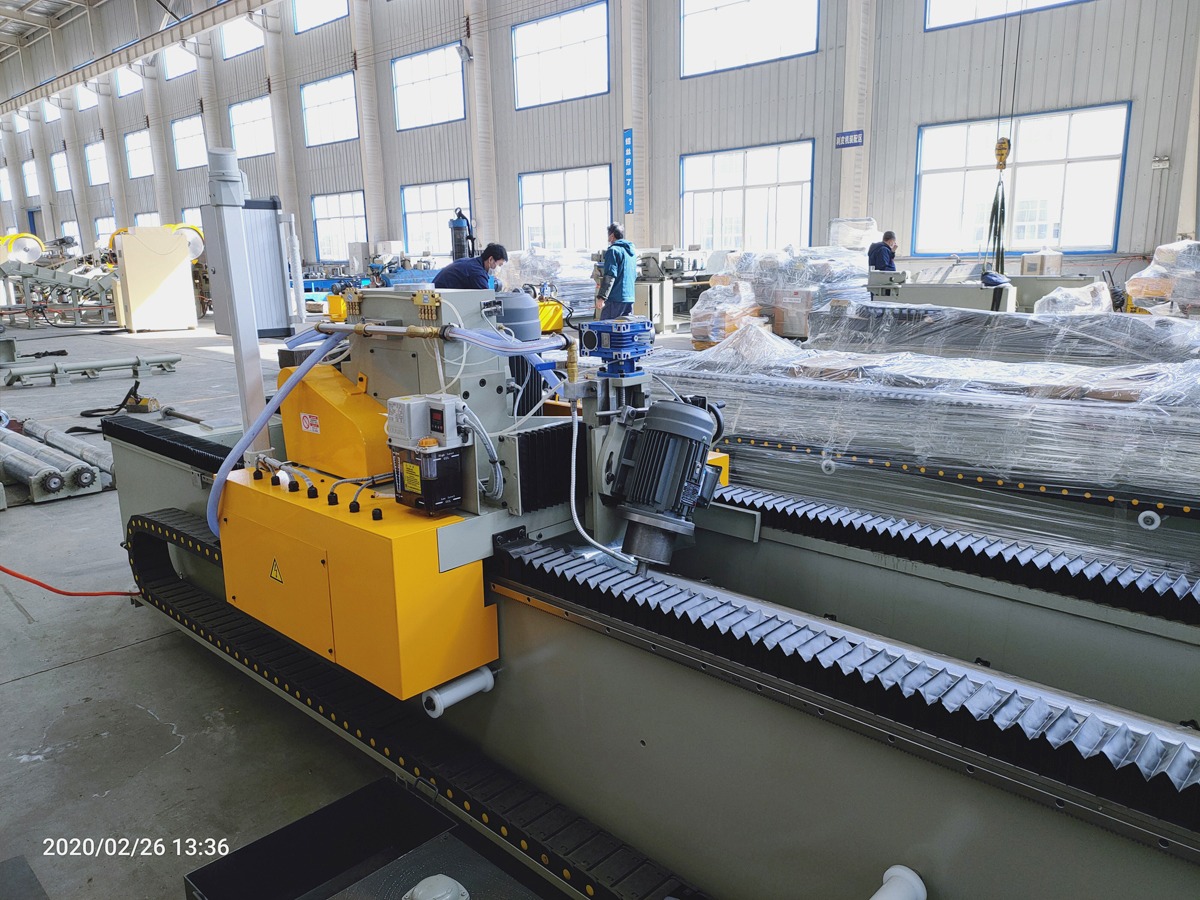

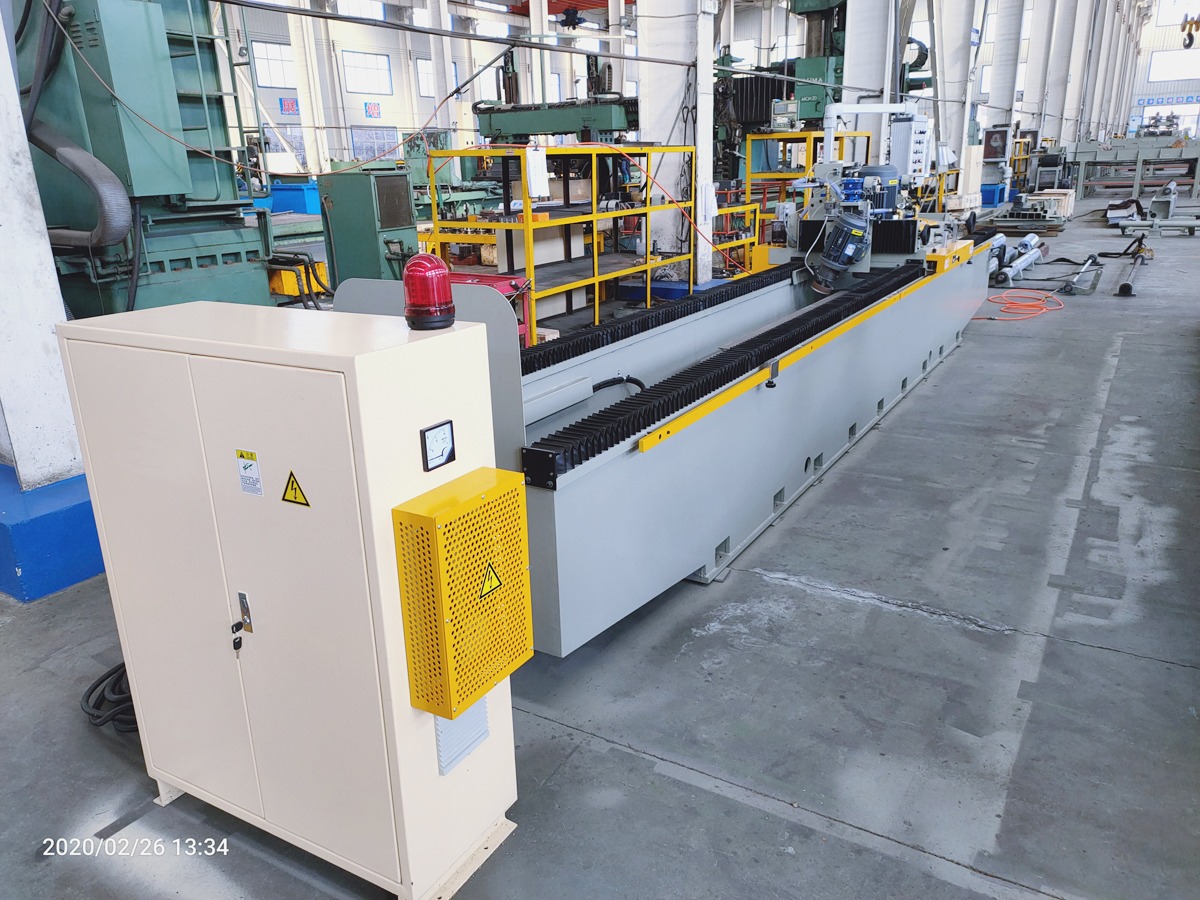

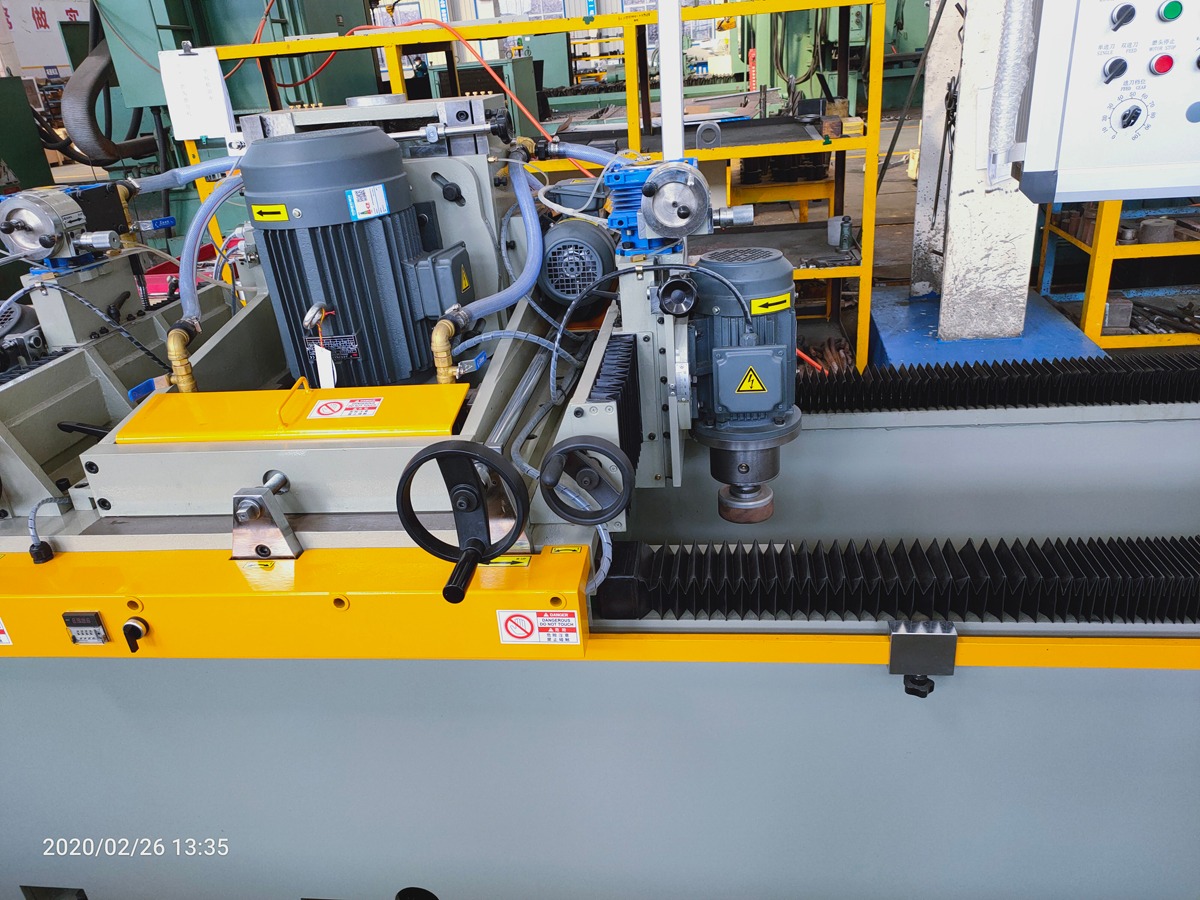

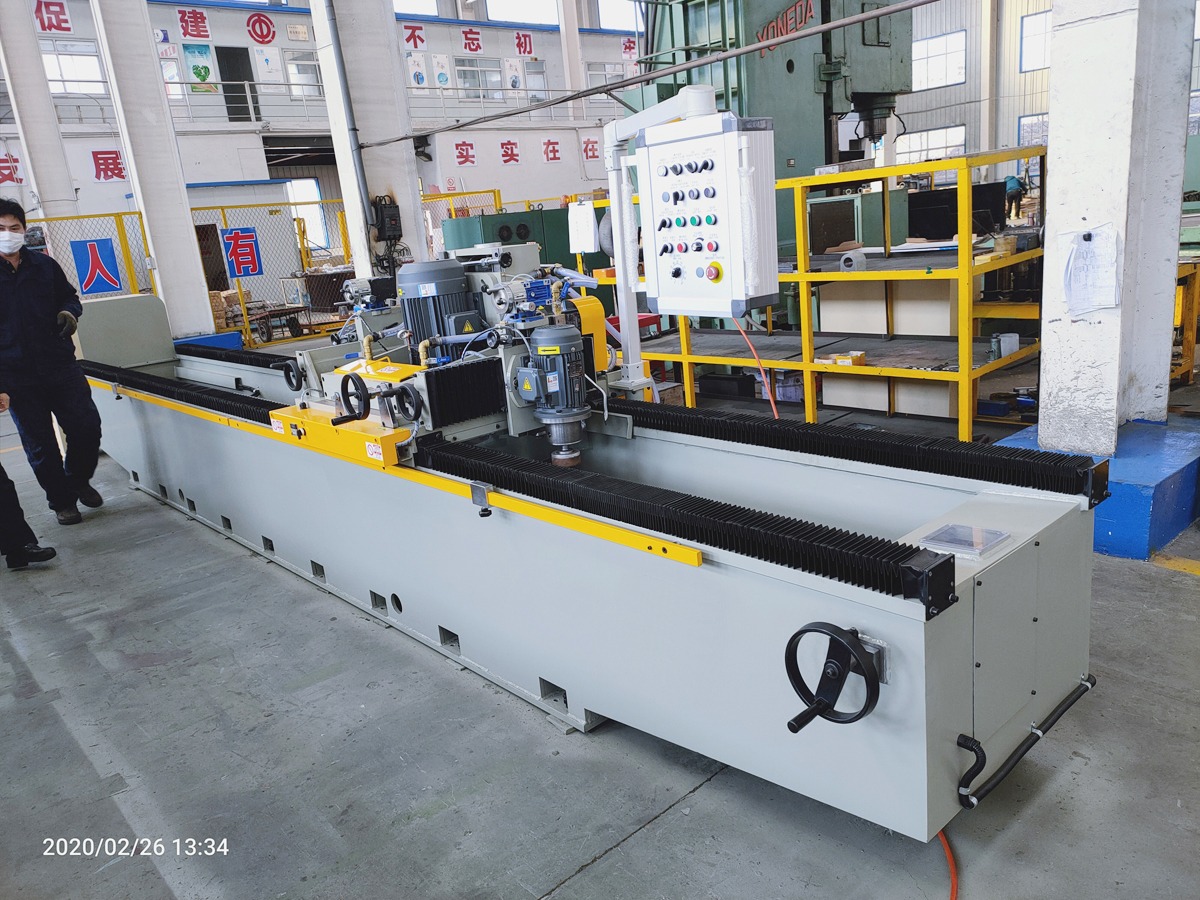

Knife Grinder with three grinding heads

This type knife grinder is used to sharpen the straight knife, such as log debarker knife, veneer peeling knife, veneer

clipping knife.

Knife grinder with three grinding heads Specifications:

Maximum grinding length: 3500mm

Electromagnetic check size: 1760x200x200mm, two pieces

Electromagnetic check rotation agnel：0~90 degree

Main grinding wheel size: Φ255xΦ195x130mm, barrel shape, granularity: 46#

Main grinding head motor: 7.5kw

Main grinding head lifting motor: 0.75kw

Main grinding head lifting speed of hand wheel: 0.26mm/r

Main grinding head lifting stoke: 0~240mm

Main grinding wheel rotation angle: ±8 degree

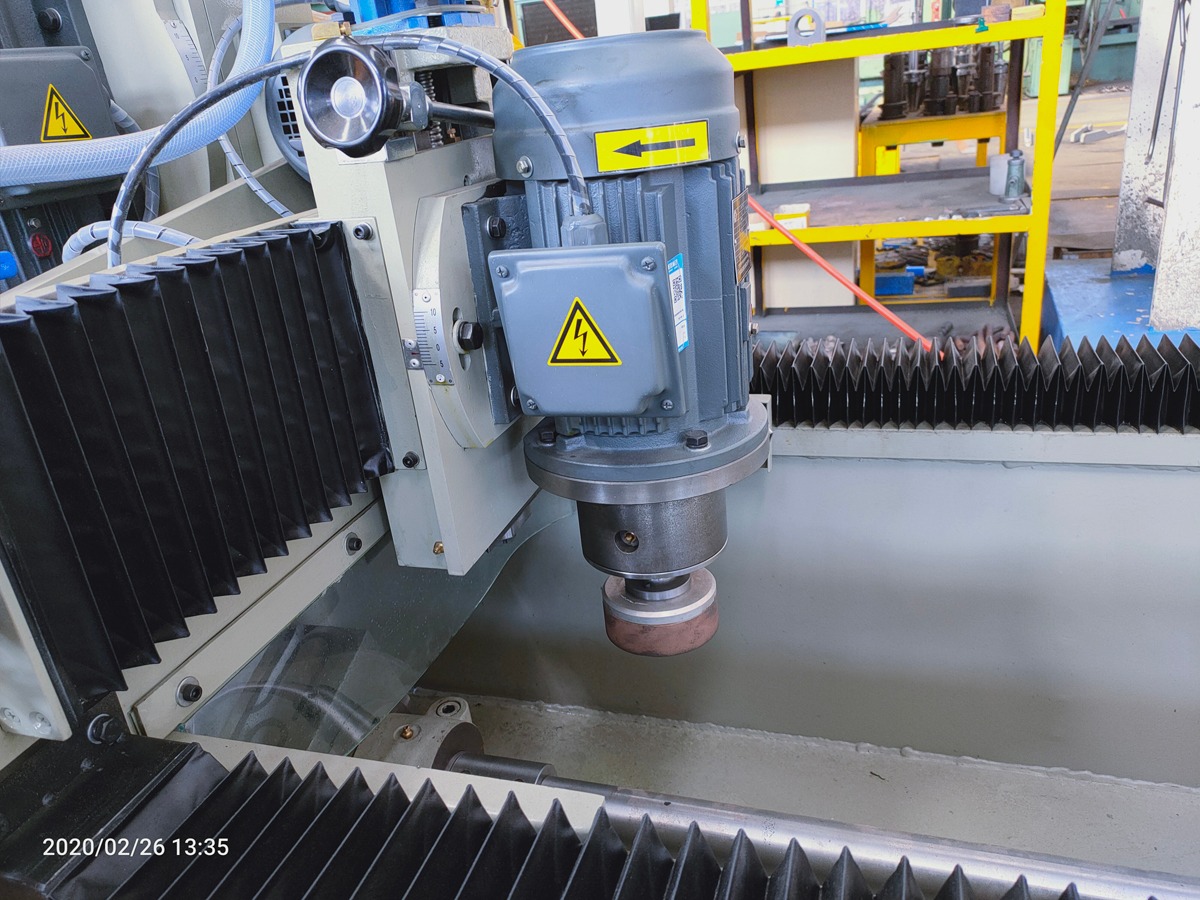

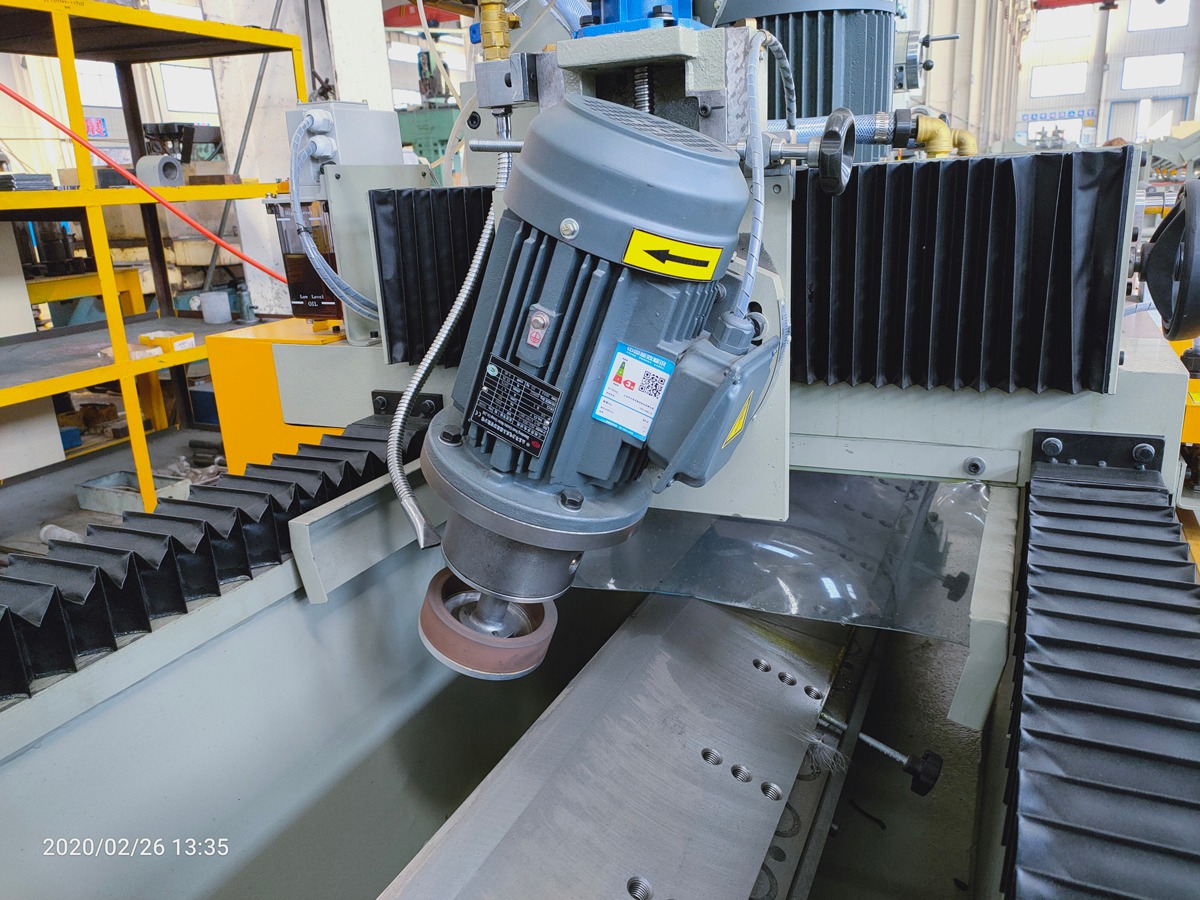

Bottom grinding wheel size:  Φ125xΦ100x30mm, cup shape,  granularity:  800#

Bottom grinding head motor: 2.2kw

Bottom grinding head rough feeding speed: 0.66mm/r

Bottom grinding head fine feeding speed: 0.022mm/r

Bottom grinding wheel tilting angle: 0~30 degree

Top grinding wheel size:  Φ100xΦ75x30mm, cup shape,  granularity: 1500#

Top grinding head motor: 2.2kw

Top grinding head rough feeding speed: 0.66mm/r

Top grinding head fine feeding speed: 0.022mm/r

Top grinding wheel tilting angle: 0~10 degree

Slide plate feeding motor: 1.5kw

Slide plate feeding speed: 0~12.5m/min, frequency control

Water motor power: 120W

permanent-magnet separator power: 75W

Electric lubricating oil pump: 20W

Total motor power: 14.4kw

Machine size: 8040x1960x1900mm
